£1,349.00
NETD≤18MK - EXCEPTIONALLY SENSITIVE
The high-sensitivity NETD≤18mK dramatically improves image quality, enabling
clearer imaging and more precise detection of subtle temperature differences.
1600*1200 QUAD SCREEN, ENHANCED CLARITY
Upgraded 1600*1200 high-resolution display provides exceptional image
clarity and fine detail, delivering a vivid and immersive viewing experience.
EFFORTLESS FOCUS WITH ERGONOMIC DESIGN
Designed with an enlarged surface and a slight protrusion, the objective
focus ring offers intuitive and comfortable adjustment, even when wearing
gloves or operating in harsh conditions.
LARGER, HIGH-LOW BUTTONS FOR EASY AND COMFORTABLE USE
The enlarged high and low button design provides enhanced tactile feedback for
easy and accurate operation—even in low-light conditions.
REMOVABLE & RECHARGEABLE 21700 BATTERY: EXTENDED OPERATING TIME
Equipped with a higher capacity 21700 battery,
easily rechargeable and replaceable,
ensuring extended operation time and reliable power
throughout the hunting journey.
Optional 1000M LASER RANGEFINDER & BALLISTIC CALCULATOR
Experience unmatched precision with our laser rangefinder and advanced ballistic
calculation technology, providing effortless target acquisition and shooting.

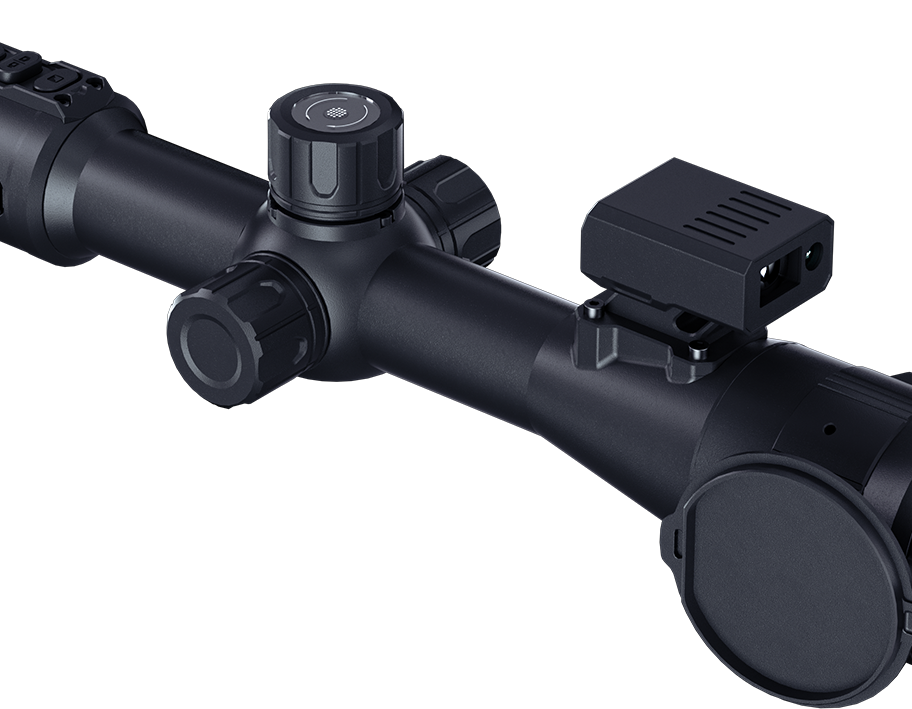

LIGHTWEIGHT ALUMINUM ALLOY BODY, ROBUST AND DURABLE
Crafted from durable, lightweight aluminium alloy, offering superior scratch and
wear resistance, designed to endure tough environments for lasting performance.
| PA4Q-35 = 480Q 35mm lens, without laser range finder. |
| PA4Q-50 = 480Q 50mm lens, without laser range finder. |
| PA4Q-35/LRF = 480Q 35mm lens with laser range finder. |
| PA4Q-50/LRF = 480Q 50mm lens with laser range finder. |
Quantity
Specifications
Pantera 480 Q
Sensor
Type
Uncooled VOx(vanadium oxide)
Resolution(pixel)
480*360
Pixel Size(µm)
12*12
NETD
≤18mK（0.018℃）
Frame Rate(Hz)
50
Detection Distance(m)
1800/2600
Optics
Objective Lens(mm)
35/50
Optical Magnification(x)
2.6/3.7
Digital Zoom(x)
2/4/6/8
Field of View (Horizontal)
9.4°/6.6°
Field of View (Vertical)
7.1°/4.9°
Field of View (Diagonal)
11.7°/8.2°
Field of View (m @100m Horizontal)
16.5/11.5
Field of View (m @100m Vertical)
12.3/8.6
Focus Range
10m-∞
Eye Relief(mm)
60
Diopter Adjustment(D)
-5~+5
Display
Type
OLED
Resolution(pixel)
1600*1200
Reticle Style
7
Reticle Color
Red/White/Yellow/Green
Scene Mode
City/Rain/Forest
Image Mode
WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel)
1600*1200
Photo Format
.JPG
Video Resolution(pixel)
1600*1200
Video Format
.mp4
Storage(GB)
Micro SD card (Max. 128GB)
Image Engine
Pard IREA
Main function
LRF Detection Range(m/yds)
1000/1200
Ballastic Caculator
Yes
PIP
Yes
Hot Track
Yes
Gyroscope
Yes
Recoil-activated Recording
Yes
Loop Recording
Yes
E-compass
Yes
Shutter
Mechanical shutter
Firmware Upgrade
Yes
Connections
USB Type-C
Yes
HDMI Output
Yes
WiFi
Yes
Supported Apps
PardVision2
Power Supply
Battery Type
Lithium Ion 21700*1
Output Voltage(V)
3.7
Operating Time(h,max)
≤8
External Power Supply(V)
USB Type-C
Environmental Characteristic
Degree of Protection
IP67
Operating Temp(°C/°F)
-30 ~ +55 / -22 ~ +131
Recoil Resistance(J)
6000
Material
Housing
Aluminum Alloy
Objective Lens
All-glass multi-coated lens
Measurement
Product Dimension/with LRF(L * W * H, mm)
345*86*80
N.W/pcs(with battery, g)
723
